16002 | HELUKABEL

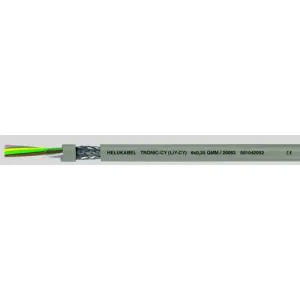

PVC control line TRONIC-CY (LiY-CY) 2 x 0.5 mm², AWG 20, shielded, gray, 16002
Unit Price (€ / mtr.)
1.1424 € *
Available: 100 mtr.
Available in 5 Days: 3,000 mtr. - if ordered today
Total Price:
1.14 € *
Price list
Quantity
Price per unit*
1 mtr.
1.1424 €
10 mtr.
1.0591 €
50 mtr.
0.9758 €
100 mtr.
0.8925 €
500 mtr.
0.8330 €
*incl. VAT plus shipping costs
Subject to prior sale
PVC Control cable, 16002, HELUKABEL
These screened cables are used for flexible use with free movement without tensile stress or forced movements in dry, moist and wet rooms but not suitable for open air, wherever the construction requirements call for a minimum outer diameter, TRONIC is the suitable cable to use. This applies especially to such areas as tool making and machine industries as well as electronic, computer, measurement and control sectors.
FEATURES
- Good chemical resistance
- Oil-resistant
- Flame-retardant
- Cadmium-free
Technical Data
- Cable material: Copper, bright
- Core insulation material: PVC
- Color: gray
- Conductor category: Cl.5 = fine-stranded
Technical specifications
| Rated voltage | 500 V | |
| Cable material | copper, bright | |
| Protective conductor available | No | |
| Cable cross-section | 0.5 mm² | |
| Material | PVC | |
| Version | control line | |
| Temperature range (unmoved) | -40 °C to 80 °C | |
| Colour | gray | |
| Drag chain suitable | No | |
| Temperature range (active) | -5 °C to 80 °C | |
| Conductor category | CL.5 = fine stranded | |
| Test voltage | 1.2 kV | |
| AWG cross-section | AWG 20 | |
| Number of cores | 2 | |
| Core insulation material | PVC | |
| Outer diameter | 5.3 mm | |
| Halogen free | No | |
| Shielding | shielded |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85444995 |
Compliance
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
