15964 | HELUKABEL
PVC control line JZ-HF-CY 5 G 1.0 mm², AWG 18, shielded, gray, 15964
Unit Price (€ / mtr.)
3.9389 € *
Available in 5 Days: 900 mtr. - if ordered today

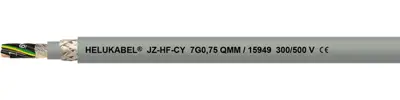

Control cable, 15964, HELUKABEL
The 15964 is a control cable used for installation in dry and damp rooms, but not outdoors. With free movement, without tensile stress and without forced motion control capabilities, this cable has proven it's reliable per-formance in standard drag chain applications, automatic handling machines, robots and permanently moving machine parts. This screened cable has been developed for interference-free data signal transmission for all areas in electronics, measurement and control technology.
Features
- Cores stranded in layers with optimally matched lay lengths
- Fleece wrapping over each stranding layer
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Cable cross-section | 1.0 mm² | |
| Material | PVC | |
| AWG cross-section | AWG 18 | |
| Product type | control line | |
| Core insulation material | PVC | |
| Drag chain suitable | Yes | |
| Test voltage | 4 kV | |
| Shielding | shielded | |
| Conductor category | CL.6 = finest stranded | |
| Colour | gray | |
| Rated voltage | 500 V | |
| Halogen free | No | |
| Temperature range (active) | -10 °C to 80 °C | |
| Outer diameter | 9.9 mm | |
| Protective conductor available | Yes | |
| Rated voltage U0 | 300 V | |
| Cable material | copper, bright | |
| Number of cores | 5 | |
| Temperature range (unmoved) | -40 °C to 80 °C | |
| Core colour sequence | black |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444995 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
