15949 | HELUKABEL

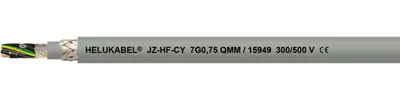

PVC control line JZ-HF-CY 7 G 0.75 mm², AWG 19, shielded, gray, 15949
Unit Price (€ / mtr.)
4.7481 € *
Available: 0 mtr.
Available in 5 Days: 1,000 mtr.
Leadtime: 6 Weeks **
Control cable, 15949, HELUKABEL
The 15949 is a control cable used for installation in dry and damp rooms, but not outdoors. With free movement, without tensile stress and without forced motion control capabilities, this cable has proven it's reliable per-formance in standard drag chain applications, automatic handling machines, robots and permanently moving machine parts. This screened cable has been developed for interference-free data signal transmission for all areas in electronics, measurement and control technology.
Features
- Cores stranded in layers with optimally matched lay lengths
- Fleece wrapping over each stranding layer
Technical specifications
| Core insulation material | PVC | |
| Colour | gray | |
| Number of cores | 7 | |
| Protective conductor available | Yes | |
| Outer diameter | 10.9 mm | |
| Drag chain suitable | Yes | |
| AWG cross-section | AWG 19 | |
| Test voltage | 4 kV | |
| Halogen free | No | |
| Core colour sequence | black | |
| Cable cross-section | 0.75 mm² | |
| Version | control line | |
| Material | PVC | |
| Cable material | copper, bright | |
| Shielding | shielded | |
| Rated voltage U0 | 300 V | |
| Temperature range (unmoved) | -40 °C to 80 °C | |
| Temperature range (active) | -10 °C to 80 °C | |
| Conductor category | CL.6 = finest stranded | |
| Rated voltage | 500 V |
Download
Logistics
| Customs tariff number | 85444995 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
