15059 | HELUKABEL
PVC control line JZ-HF 7 G 1.5 mm², AWG 16, unshielded, gray, 15059
Unit Price (€ / mtr.)
3.689 € *
Standard delivery time from the manufacturer is: 6 Weeks

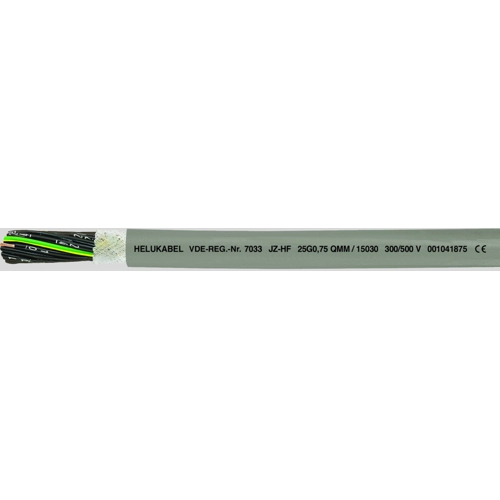

Control cable, 15059, HELUKABEL
JZ-HF cables are ideal for use in the machine tool industry, in robotics and machine production and anywhere where high flexibility is essential. These cables have shown excellent performance in combination with standard cable trays. These cables are suitable for flexible use for medium mechanical stresses with free movements.
FEATURES
- Good chemical resistance
- Abrasion-resistant
- Oil-resistant
- Flame-retardant
Technical Data
- Cable material: Copper, bright
- Core insulation material: PVC
- Color: gray
- Conductor category: Cl.5 = fine-stranded
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Material | PVC | |
| Core insulation material | PVC | |
| Test voltage | 4 kV | |
| Core colour sequence | black | |
| Drag chain suitable | Yes | |
| Colour | gray | |
| Protective conductor available | Yes | |
| Version | control line | |
| Rated voltage | 500 V | |
| Cable material | copper, bright | |
| Conductor category | CL.5 = fine stranded | |
| Number of cores | 7 | |
| Standard number | VDE | |
| Halogen free | No | |
| Temperature range (unmoved) | -40 °C to 80 °C | |
| Temperature range (active) | -10 °C to 80 °C | |
| Shielding | unshielded | |
| Rated voltage U0 | 300 V | |
| AWG cross-section | AWG 16 | |
| Cable cross-section | 1.5 mm² | |
| Outer diameter | 9.9 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444995 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
