15057 | HELUKABEL
PVC control line JZ-HF 4 G 1.5 mm², AWG 16, unshielded, gray, 15057
Unit Price (€ / mtr.)
2.3205 € *
Standard delivery time from the manufacturer is: 6 Weeks

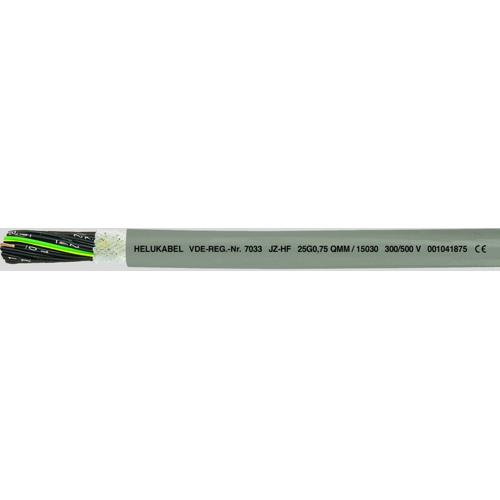

Control cable, 15057, HELUKABEL
JZ-HF cables are ideal for use in the machine tool industry, in robotics and machine production and anywhere where high flexibility is essential. These cables have shown excellent performance in combination with standard cable trays. These cables are suitable for flexible use for medium mechanical stresses with free movements.
FEATURES
- Good chemical resistance
- Abrasion-resistant
- Oil-resistant
- Flame-retardant
Technical Data
- Cable material: Copper, bright
- Core insulation material: PVC
- Color: gray
- Conductor category: Cl.5 = fine-stranded
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Temperature range (active) | -10 °C to 80 °C | |
| Version | control line | |
| Cable cross-section | 1.5 mm² | |
| Core colour sequence | black | |
| Drag chain suitable | Yes | |
| Conductor category | CL.5 = fine stranded | |
| Core insulation material | PVC | |
| Halogen free | No | |
| Number of cores | 4 | |
| Shielding | unshielded | |
| AWG cross-section | AWG 16 | |
| Rated voltage | 500 V | |
| Standard number | VDE | |
| Cable material | copper, bright | |
| Rated voltage U0 | 300 V | |
| Test voltage | 4 kV | |
| Colour | gray | |
| Protective conductor available | Yes | |
| Material | PVC | |
| Outer diameter | 7.4 mm | |
| Temperature range (unmoved) | -40 °C to 80 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444995 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
