15021 | HELUKABEL
PVC control line JZ-HF 4 G 0.75 mm², AWG 19, unshielded, gray, 15021
Unit Price (€ / mtr.)
1.428 € *
Available in 5 Days: 1,700 mtr. - if ordered today

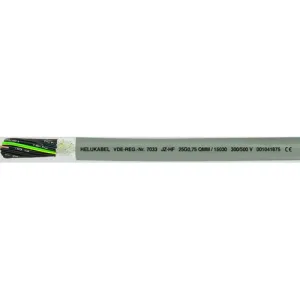

Control cable, 15021, HELUKABEL
JZ-HF cables are ideal for use in the machine tool industry, in robotics and machine production and anywhere where high flexibility is essential. These cables have shown excellent performance in combination with standard cable trays. These cables are suitable for flexible use for medium mechanical stresses with free movements.
FEATURES
- Good chemical resistance
- Abrasion-resistant
- Oil-resistant
- Flame-retardant
Technical Data
- Cable material: Copper, bright
- Core insulation material: PVC
- Color: gray
- Conductor category: Cl.5 = fine-stranded
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage | 500 V | |
| Version | control line | |
| Core colour sequence | black | |
| Colour | gray | |
| Temperature range (unmoved) | -40 °C to 80 °C | |
| Number of cores | 4 | |
| Conductor category | CL.5 = fine stranded | |
| Protective conductor available | Yes | |
| Core insulation material | PVC | |
| Outer diameter | 6.4 mm | |
| Shielding | unshielded | |
| Halogen free | No | |
| Test voltage | 4 kV | |
| Temperature range (active) | -10 °C to 80 °C | |
| AWG cross-section | AWG 19 | |
| Drag chain suitable | Yes | |
| Material | PVC | |
| Cable material | copper, bright | |
| Cable cross-section | 0.75 mm² | |
| Standard number | VDE | |
| Rated voltage U0 | 300 V |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444995 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
