14079 | HELUKABEL

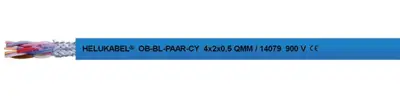

PVC control line OB-BL-PAAR-CY 8 x 0.5 mm², AWG 20, shielded, blue, 14079
Unit Price (€ / mtr.)
3.2606 € *
Standard delivery time from the manufacturer is: 6 Weeks
Control cable, 14079, HELUKABEL
PVC control cable used for flexible applications involving medium mechanical stress with free movement, without tensile stress and without forced motion control. For explosion-endangered areas marked as intrinsically safe (blue) (ignition protection type -i-) flexible control or measurement cable for intrinsically safe systems in measurement and control technology. The screening guarantees an exact data transmission.
Features
- Largely resistant to oil
Technical specifications
| Core insulation material | PVC | |
| Colour | blue | |
| Number of cores | 8 | |
| Protective conductor available | No | |
| Outer diameter | 9 mm | |
| Drag chain suitable | No | |
| AWG cross-section | AWG 20 | |
| Test voltage | 2 kV | |
| Halogen free | No | |
| Cable cross-section | 0.5 mm² | |
| Version | control line | |
| Material | PVC | |
| Cable material | copper, bright | |
| Shielding | shielded | |
| Temperature range (unmoved) | -30 °C to 80 °C | |
| Temperature range (active) | -10 °C to 80 °C | |
| Conductor category | CL.5 = fine stranded |
Download
Logistics
| Customs tariff number | 85444995 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
