13563 | HELUKABEL

Polymer control line MEGAFLEX 500-C 3 G 2.5 mm², AWG 14, shielded, gray, 13563

Order No.: 93F6370
EAN: 4060892056819
MPN:
13563
Series: MEGAFLEX 500-C
13563 HELUKABEL Control Cables

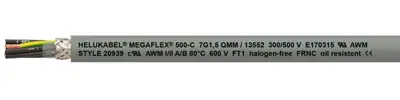

Image may differ
Unit Price (€ / mtr.)
7.3304 € *
Available: 0 mtr.
Leadtime: 6 Weeks **
Total Price:
733.04 € *
*incl. VAT plus shipping costs
**Subject to prior sale
100 mtr.
7.3304 €

Control cable, 13563, HELUKABEL

The 13563 is a control cable for fixed installation or flexible applications with non-recurring free movement, without forced movement control and without tensile stress; for heavy mechanical load in dry, damp and wet rooms as well as outdoors. It can be used as a connecting and control cable in machine and plant construction, HVAC technology, warehousing and materials handling technology, shipbuilding, renewable energy sector such as wind turbine construction.

Features

  • Cores stranded in layers with optimal lay lengths
  • Foil wrapping
  • Abrasion-resistant
  • Wear-resistant
Technical specifications
Core insulation material polymer
Colour gray
Number of cores 3
Protective conductor available Yes
Outer diameter 9.3 mm
Drag chain suitable No
AWG cross-section AWG 14
Test voltage 3 kV
Rated voltage UL/CSA 600 V
Halogen free Yes
Core colour sequence black
Cable cross-section 2.5 mm²
Version control line
Material polymer
Cable material copper, bright
Shielding shielded
Rated voltage U0 300 V
Temperature range (unmoved) -40 °C to 80 °C
Temperature range (active) -30 °C to 80 °C
Conductor category CL.5 = fine stranded
Rated voltage 500 V
Logistics
Customs tariff number 85444995
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
