13552 | HELUKABEL

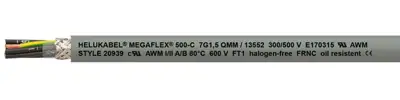

Polymer control line MEGAFLEX 500-C 7 G 1.5 mm², AWG 16, shielded, gray, 13552
Unit Price (€ / mtr.)
8.0087 € *
Available: 0 mtr.
Leadtime: 6 Weeks **
Control cable, 13552, HELUKABEL
The 13552 is a control cable for fixed installation or flexible applications with non-recurring free movement, without forced movement control and without tensile stress; for heavy mechanical load in dry, damp and wet rooms as well as outdoors. It can be used as a connecting and control cable in machine and plant construction, HVAC technology, warehousing and materials handling technology, shipbuilding, renewable energy sector such as wind turbine construction.
Features
- Cores stranded in layers with optimal lay lengths
- Foil wrapping
- Abrasion-resistant
- Wear-resistant
Technical specifications
| Core insulation material | polymer | |
| Colour | gray | |
| Number of cores | 7 | |
| Protective conductor available | Yes | |
| Outer diameter | 11.2 mm | |
| Drag chain suitable | No | |
| AWG cross-section | AWG 16 | |
| Test voltage | 3 kV | |
| Rated voltage UL/CSA | 600 V | |
| Halogen free | Yes | |
| Core colour sequence | black | |
| Cable cross-section | 1.5 mm² | |
| Version | control line | |
| Material | polymer | |
| Cable material | copper, bright | |
| Shielding | shielded | |
| Rated voltage U0 | 300 V | |
| Temperature range (unmoved) | -40 °C to 80 °C | |
| Temperature range (active) | -30 °C to 80 °C | |
| Conductor category | CL.5 = fine stranded | |
| Rated voltage | 500 V |
Download
Logistics
| Customs tariff number | 85444995 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
