13500 | HELUKABEL

Polymer control line MEGAFLEX 500-C 2 x 0.5 mm², AWG 20, shielded, gray, 13500

Order No.: 93F6360
EAN: 4060892056222
MPN:
13500
Series: MEGAFLEX 500-C
13500 HELUKABEL Control Cables

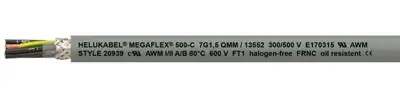

Image may differ
Unit Price (€ / mtr.)
3.2963 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
329.63 € *
*incl. VAT plus shipping costs
Subject to prior sale
100 mtr.
3.2963 €

Control cable, 13500, HELUKABEL

The 13500 is a control cable for fixed installation or flexible applications with non-recurring free movement, without forced movement control and without tensile stress; for heavy mechanical load in dry, damp and wet rooms as well as outdoors. It can be used as a connecting and control cable in machine and plant construction, HVAC technology, warehousing and materials handling technology, shipbuilding, renewable energy sector such as wind turbine construction.

Features

  • Cores stranded in layers with optimal lay lengths
  • Foil wrapping
  • Abrasion-resistant
  • Wear-resistant
Technical specifications
Rated voltage 500 V
Halogen free Yes
Test voltage 3 kV
Rated voltage UL/CSA 600 V
Temperature range (unmoved) -40 °C to 80 °C
Rated voltage U0 300 V
Temperature range (active) -30 °C to 80 °C
Number of cores 2
Shielding shielded
Protective conductor available No
Cable material copper, bright
AWG cross-section AWG 20
Core insulation material polymer
Outer diameter 5.9 mm
Colour gray
Core colour sequence black
Cable cross-section 0.5 mm²
Conductor category CL.5 = fine stranded
Material polymer
Version control line
Drag chain suitable No
Logistics
Customs tariff number 85444995
Compliance
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
