12508 | HELUKABEL
PUR control line JZ-602-PUR 4 G 2.5 mm², AWG 14, unshielded, gray, 12508
Unit Price (€ / mtr.)
6.9139 € *
Available in 5 Days: 500 mtr. - if ordered today

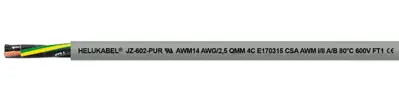

Connection cable, 12508, HELUKABEL
UL and CSA approved flexible control cable rated at 600 V, primarily designed for exporters to the US or Canadian market. Used in machine tools, control systems, connection between control panels and machines, assembly lines and other industrial equipment. Suitable for installation in dry, moist, wet and outdoor environment and moderate flexing applications.
Features
- Resistant to oil, UV radiation, ozone, oxygen, weathering effects, hydrolysis, microbes, coolants, hydraulic fluids, acids, alkalis, greases, seawater and wastewater
- Highly abrasion-resistant, notch-resistant, tear-resistant, cut-resistant, wear-resistant, low adhesion
- For outdoor use
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of cores | 4 | |
| Drag chain suitable | No | |
| Colour | gray | |
| Material | PUR | |
| Cable cross-section | 2.5 mm² | |
| Conductor category | CL.5 = fine stranded | |
| Test voltage | 3 kV | |
| Cable material | copper, bright | |
| Rated voltage UL/CSA | 600 V | |
| Core insulation material | PVC | |
| Temperature range (active) | -5 °C to 80 °C | |
| AWG cross-section | AWG 14 | |
| Protective conductor available | Yes | |
| Temperature range (unmoved) | -40 °C to 80 °C | |
| Outer diameter | 9.5 mm | |
| Halogen free | No | |
| Product type | control line | |
| Shielding | unshielded |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444995 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
