12498 | HELUKABEL

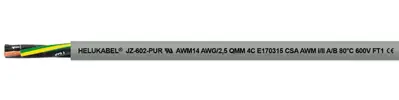

PUR control line JZ-602-PUR 5 G 1.5 mm², AWG 16, unshielded, gray, 12498
Unit Price (€ / mtr.)
6.2237 € *
Standard delivery time from the manufacturer is: 6 Weeks
Connection cable, 12498, HELUKABEL
UL and CSA approved flexible control cable rated at 600 V, primarily designed for exporters to the US or Canadian market. Used in machine tools, control systems, connection between control panels and machines, assembly lines and other industrial equipment. Suitable for installation in dry, moist, wet and outdoor environment and moderate flexing applications.
Features
- Resistant to oil, UV radiation, ozone, oxygen, weathering effects, hydrolysis, microbes, coolants, hydraulic fluids, acids, alkalis, greases, seawater and wastewater
- Highly abrasion-resistant, notch-resistant, tear-resistant, cut-resistant, wear-resistant, low adhesion
- For outdoor use
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Temperature range (active) | -5 °C to 80 °C | |
| Conductor category | CL.5 = fine stranded | |
| Drag chain suitable | No | |
| Rated voltage UL/CSA | 600 V | |
| Cable cross-section | 1.5 mm² | |
| Outer diameter | 9.4 mm | |
| Shielding | unshielded | |
| Temperature range (unmoved) | -40 °C to 80 °C | |
| Colour | gray | |
| Number of cores | 5 | |
| Core insulation material | PVC | |
| Test voltage | 3 kV | |
| Protective conductor available | Yes | |
| Material | PUR | |
| Halogen free | No | |
| AWG cross-section | AWG 16 | |
| Version | control line | |
| Cable material | copper, bright |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444995 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
