12474 | HELUKABEL

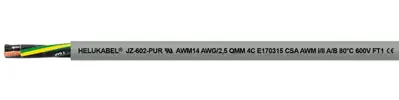

PUR control line JZ-602-PUR 5 G 0.5 mm², AWG 20, unshielded, gray, 12474
Unit Price (€ / mtr.)
3.9627 € *
Standard delivery time from the manufacturer is: 6 Weeks
Connection cable, 12474, HELUKABEL
UL and CSA approved flexible control cable rated at 600 V, primarily designed for exporters to the US or Canadian market. Used in machine tools, control systems, connection between control panels and machines, assembly lines and other industrial equipment. Suitable for installation in dry, moist, wet and outdoor environment and moderate flexing applications.
Features
- Resistant to oil, UV radiation, ozone, oxygen, weathering effects, hydrolysis, microbes, coolants, hydraulic fluids, acids, alkalis, greases, seawater and wastewater
- Highly abrasion-resistant, notch-resistant, tear-resistant, cut-resistant, wear-resistant, low adhesion
- For outdoor use
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Material | PUR | |
| Cable material | copper, bright | |
| Version | control line | |
| Conductor category | CL.5 = fine stranded | |
| Number of cores | 5 | |
| Shielding | unshielded | |
| Core insulation material | PVC | |
| Test voltage | 3 kV | |
| Cable cross-section | 0.5 mm² | |
| Temperature range (unmoved) | -40 °C to 80 °C | |
| Temperature range (active) | -5 °C to 80 °C | |
| Rated voltage UL/CSA | 600 V | |
| Drag chain suitable | No | |
| Protective conductor available | Yes | |
| Outer diameter | 7.3 mm | |
| Colour | gray | |
| Halogen free | No | |
| AWG cross-section | AWG 20 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444995 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
