12059 | HELUKABEL

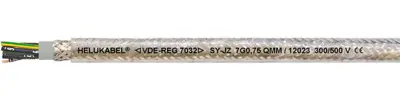

PVC control line SY-JZ 4 G 1.5 mm², AWG 16, shielded, transparent, 12059

Order No.: 93F6932
EAN: 4060892034695
MPN:
12059
Series: SY-JZ
12059 HELUKABEL Control Cables
Image may differ
Unit Price (€ / mtr.)
3.3558 € *
Available: 0 mtr.
Leadtime: 6 Weeks **
Total Price:
335.58 € *
*incl. VAT plus shipping costs
**Subject to prior sale
100 mtr.
3.3558 €

Control cable, 12059, HELUKABEL

This is used as a connection and control cable for flexible applications involving medium mechanical stress with free movement, without tensile stress and without forced motion control in dry, damp and wet rooms, however, not suitable for outdoor use in machine tools, plant construction and data technology. Due to the dense braiding, the cable is well protected against mechanical damage. The galvanisation of the braid prevents corrosion and guarantees improved solderability of the braid.

Technical specifications
Core insulation material PVC
Colour transparent
Number of cores 4
Protective conductor available Yes
Outer diameter 10.4 mm
Drag chain suitable No
AWG cross-section AWG 16
Test voltage 4 kV
Halogen free No
Core colour sequence black
Cable cross-section 1.5 mm²
Version control line
Material PVC
Cable material copper, bright
Shielding shielded
Rated voltage U0 300 V
Temperature range (unmoved) -40 °C to 80 °C
Temperature range (active) -15 °C to 80 °C
Conductor category CL.5 = fine stranded
Rated voltage 500 V
Logistics
Customs tariff number 85444995
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
