12025 | HELUKABEL

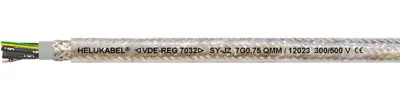

PVC control line SY-JZ 12 G 0.75 mm², AWG 19, shielded, transparent, 12025
Unit Price (€ / mtr.)
5.2955 € *
Standard delivery time from the manufacturer is: 6 Weeks
Control cable, 12025, HELUKABEL
This is used as a connection and control cable for flexible applications involving medium mechanical stress with free movement, without tensile stress and without forced motion control in dry, damp and wet rooms, however, not suitable for outdoor use in machine tools, plant construction and data technology. Due to the dense braiding, the cable is well protected against mechanical damage. The galvanisation of the braid prevents corrosion and guarantees improved solderability of the braid.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Halogen free | No | |
| Shielding | shielded | |
| Test voltage | 4 kV | |
| Colour | transparent | |
| Drag chain suitable | No | |
| Rated voltage U0 | 300 V | |
| Outer diameter | 13.4 mm | |
| Protective conductor available | Yes | |
| Core insulation material | PVC | |
| Temperature range (active) | -15 °C to 80 °C | |
| Number of cores | 12 | |
| Cable material | copper, bright | |
| AWG cross-section | AWG 19 | |
| Material | PVC | |
| Core colour sequence | black | |
| Rated voltage | 500 V | |
| Version | control line | |
| Conductor category | CL.5 = fine stranded | |
| Temperature range (unmoved) | -40 °C to 80 °C | |
| Cable cross-section | 0.75 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444995 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
