11945 | HELUKABEL

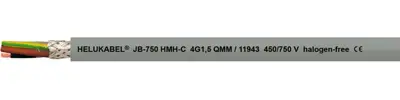

Polymer control line JB-750 HMH-C 3 G 2.5 mm², AWG 14, shielded, gray, 11945
Unit Price (€ / mtr.)
6.2118 € *
Standard delivery time from the manufacturer is: 6 Weeks
Control cable, 11945, HELUKABEL
Halogen-free, flame retardant control cable is used for instrumentation and control cables in tooling machinery, conveyor and transportation belts, production lines, in plant construction, air-conditioning systems as well as in iron and steel works. For fixed installation or for flexing applications, for casual, not constantly recurring free movement without forced motion and without tensile stress for medium mechanical loads. The cable is suitable for use in dry, damp and wet environments and for installation on plaster An interference-free transmission of signals and pulse in assured by the high degree of screening.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Material | polymer | |
| Cable material | copper, bright | |
| Version | control line | |
| Conductor category | CL.5 = fine stranded | |
| Number of cores | 3 | |
| Shielding | shielded | |
| Core insulation material | polymer | |
| Test voltage | 3 kV | |
| Cable cross-section | 2.5 mm² | |
| Temperature range (unmoved) | -40 °C to 70 °C | |
| Temperature range (active) | -15 °C to 70 °C | |
| Rated voltage U0 | 450 V | |
| Drag chain suitable | No | |
| Protective conductor available | Yes | |
| Outer diameter | 9.9 mm | |
| Colour | gray | |
| Rated voltage | 750 V | |
| Halogen free | Yes | |
| AWG cross-section | AWG 14 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444995 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
