11487 | HELUKABEL

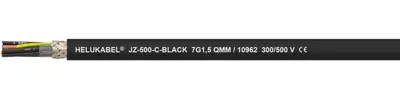

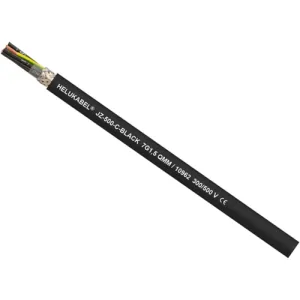

PVC connection cable JZ-500-C black 7 x 0.75 mm², AWG 19, shielded, black, 11487
Unit Price (€ / mtr.)
3.2249 € *
Standard delivery time from the manufacturer is: 6 Weeks
Connection cable, 11487, HELUKABEL
The 11487 is a connection cable used for flexible applications involving medium mechanical stress with free movement, without tensile stress and without forced motion control in dry, damp and wet rooms, as well as outdoors. Used as a connection and control cable in machine and plant construction, in machine tools, production lines, assembly lines and conveyor belts.
Features
- UV resistant
- For outdoor use
- EMC-preferred type
- Largely oil resistant
- Versatile use in many industries, particularly in machine and plant construction
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 19 | |
| Core insulation material | PVC | |
| Temperature range (active) | -10 °C to 80 °C | |
| Test voltage | 4 kV | |
| Colour | black | |
| Halogen free | No | |
| Number of cores | 7 | |
| Shielding | shielded | |
| Outer diameter | 8.4 mm | |
| Conductor category | CL.5 = fine stranded | |
| Temperature range (unmoved) | -40 °C to 80 °C | |
| Material | PVC | |
| Rated voltage U0 | 300 V | |
| Protective conductor available | No | |
| Rated voltage | 500 V | |
| Drag chain suitable | No | |
| Product type | connection cable | |
| Cable material | copper, bright | |
| Cable cross-section | 0.75 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444995 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
