10542 | HELUKABEL

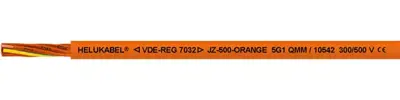

PVC control line JZ-500-ORANGE 5 G 1.0 mm², AWG 18, unshielded, orange, 10542
Unit Price (€ / mtr.)
2.1658 € *
Standard delivery time from the manufacturer is: 6 Weeks
Control cable, 10542, HELUKABEL
The 10542 is a PVC control cable Used for flexible applications involving medium mechanical stress with free movement, without tensile stress and without forced motion control in dry, damp and wet rooms, however, not suitable for outdoor use as a control cable acc. to EN 60204-1 or VDE 0113- 1. According to this standard, it is recommended that insulated conductors of interlocking power circuits supplied by an external power supply that remain live when the main switch is turned off, are marked in orange.
Technical specifications
| Core insulation material | PVC | |
| Colour | orange | |
| Number of cores | 5 | |
| Protective conductor available | Yes | |
| Outer diameter | 7.5 mm | |
| Drag chain suitable | No | |
| AWG cross-section | AWG 18 | |
| Test voltage | 4 kV | |
| Halogen free | No | |
| Core colour sequence | orange | |
| Cable cross-section | 1.0 mm² | |
| Version | control line | |
| Material | PVC | |
| Cable material | copper, bright | |
| Shielding | unshielded | |
| Rated voltage U0 | 300 V | |
| Temperature range (unmoved) | -40 °C to 80 °C | |
| Temperature range (active) | -15 °C to 80 °C | |
| Conductor category | CL.5 = fine stranded | |
| Rated voltage | 500 V |
Download
Logistics
| Customs tariff number | 85444995 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
