10146 | HELUKABEL
PVC control line JZ-500 / OZ-500 12 G 4.0 mm², AWG 12, unshielded, gray, 10146
Unit Price (€ / mtr.)
9.520 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
952.00 € *
Price list
Quantity
Price per unit*
100 mtr.
9.520 €
500 mtr.
8.925 €
*incl. VAT plus shipping costs
Subject to prior sale

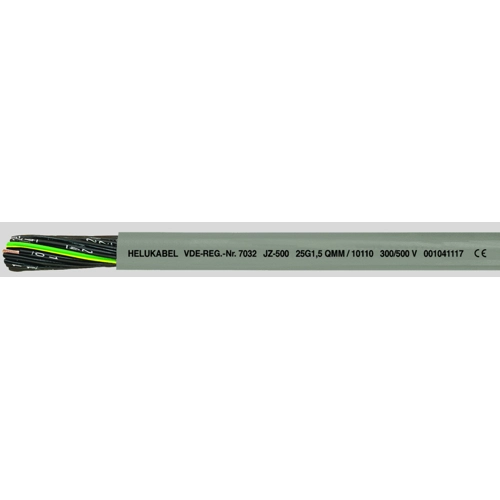

PVC Control cable, 10146, HELUKABEL
These cables are appropriate for flexible use with medium mechanical stresses, and free movement without tensile stress or forced movements in dry, moist and wet rooms but not open air. Suitable to be used as measuring and control cables in tool machines, conveyor belts, assembly lines, plant engineering, AC technology, steel production and other manufacturing environments.
FEATURES
- Good chemical resistance
- Power Chain
- Oil-resistant
- Cadmium-free
Technical Data
- Cable material: Copper, bright
- Core insulation material: PVC
- Color: gray
- Conductor category: Cl.5 = fine-stranded
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Standard number | VDE | |
| Drag chain suitable | Yes | |
| AWG cross-section | AWG 12 | |
| Test voltage | 4 kV | |
| Product type | control line | |
| Colour | gray | |
| Protective conductor available | Yes | |
| Number of cores | 12 | |
| Outer diameter | 18.2 mm | |
| Temperature range (unmoved) | -40 °C to 80 °C | |
| Core colour sequence | black | |
| Shielding | unshielded | |
| Temperature range (active) | -15 °C to 80 °C | |
| Rated voltage | 500 V | |
| Cable material | copper, bright | |
| Halogen free | No | |
| Conductor category | CL.5 = fine stranded | |
| Core insulation material | PVC | |
| Cable cross-section | 4.0 mm² | |
| Material | PVC | |
| Rated voltage U0 | 300 V |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444995 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
