920375 | HELUKABEL
Tubing holders, NW10, (W x H) 18.5 x 21 mm, PA, black, for protective hoses HELUcond CO, 920375
Unit Price (€ / pc.)
1.3209 € *
Standard delivery time from the manufacturer is: 6 Weeks
Tubes holder, 920375, HELUKABEL

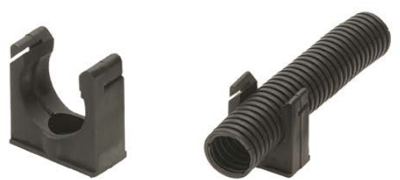

Tube holder for dividible HELUcond CO protection tube. Quick fastening with integrated rib, which also fixes the protection tube in an axial direction.
Features
- Halogen-free
- Cadmium-free
- Resistant to: fuels, mineral oils, greases, weak bases, weak acids
Applications
- Machine and plant construction
- Robotics
- Automation technology
- Vehicle construction and shipbuilding
- Railway technology
- Installation technology
- Control cabinet construction
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Width | 18.5 mm | |
| Colour | black | |
| Suitable for | protective hoses HELUcond CO | |
| max. operating temperature | 105 °C | |
| min. operating temperature | -30 °C | |
| Material | PA | |
| Version | NW10 | |
| Product type | tubing holders | |
| Height | 21 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 39174000 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
