920334 | HELUKABEL

Corrugated hose holder, NW48/50, (W x H) 68 x 66 mm, PA, black, 920334

Order No.: 93F9259
EAN: 4060892382062
MPN:
920334
Series: SHV
920334 HELUKABEL Cable Management Accessories
Image may differ
Unit Price (€ / pc.)
1.7255 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
34.51 € *
*incl. VAT plus shipping costs
Subject to prior sale
20 pcs.
1.7255 €

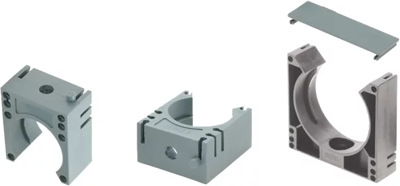

Corrugated tube holder, 920334, HELUKABEL

System holder for HELUcond protection tubes. Universal system holder with optional clips for extreme loads. Quick assembly through single-hole fastening.

Features

  • Halogen-free
  • Resistant to: fuels, mineral oils, greases, weak bases, weak acids

Applications

  • Machine and plant construction
  • Robotics
  • Automation technology
  • Vehicle construction and shipbuilding
  • Railway technology
  • Installation technology
  • Control cabinet construction
Technical specifications
Filter Property Value
Height 66 mm
Colour black
min. operating temperature -40 °C
max. operating temperature 105 °C
Version NW48/50
Material PA
Width 68 mm
Product type corrugated hose holder
Logistics
Property Value
Customs tariff number 39174000
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
