99633 | HELUKABEL

Cable gland, M25, 33 mm, Clamping range 9 to 16 mm, IP68/IP69K, natural, 99633

Order No.: 93F7942
EAN: 4060892364648
MPN:
99633
Series: HSK-PVDF

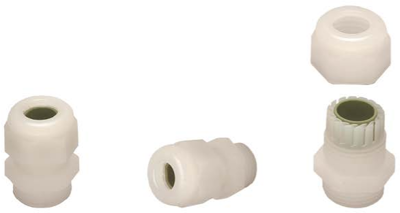

99633 HELUKABEL Cable Glands Image 1

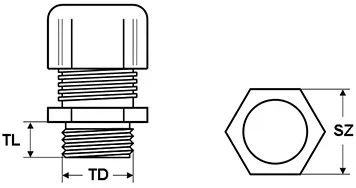

99633 HELUKABEL Cable Glands Image 2
Image may differ
Unit Price (€ / pc.)
10.0912 € *
Available in 5 Days: 50 pcs. - if ordered today
Total Price:
504.56 € *
*incl. VAT plus shipping costs
Subject to prior sale
50 pcs.
10.0912 €

Cable gland, 99633, HELUKABEL

The 99633 is a PVDF cable gland for use in the chemical industry, at high temperatures, under longterm UV exposure. The cable gland to meet stringent requirements in technology.

Features

  • Optimum strain relief through clamping lamella
  • Easy to assemble, time and cost savings
  • Watertight, dust-tight
  • Large clamping areas
  • Large temperature range
Technical specifications
Colour natural
Degree of protection (IP) IP68/IP69K
max. clamping range 16 mm
Product type cable gland
min. operating temperature -35 °C
Material PVDF
spanner size 33 mm
max. operating temperature 150 °C
min. clamping range 9 mm
Thread size M25
Logistics
Customs tariff number 39269097
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
