98096 | HELUKABEL

Cable gland, M50, 54 mm, Clamping range 39 to 41 mm, IP54, metal, 98096

Order No.: 93F8893
EAN: 4060892369919
MPN:
98096
Series: STR
98096 HELUKABEL Cable Glands
Image may differ
Unit Price (€ / pc.)
15.7318 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
78.66 € *
*incl. VAT plus shipping costs
Subject to prior sale
5 pcs.
15.7318 €

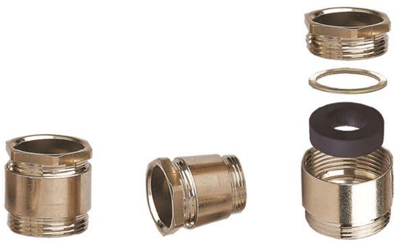

Cable gland, 98096, HELUKABEL

Nickel plated round brass cable gland acc. to DIN 46320, Temperature range -30°C to +90°C, Protection class IP 54.

Applications

  • Machine and plant construction
  • Automation technology
  • Vehicle construction and shipbuilding
  • Railway technology
  • Installation technology
  • Control cabinet construction
Technical specifications
Colour metal
Degree of protection (IP) IP54
max. clamping range 41 mm
Product type cable gland
min. operating temperature -30 °C
Material brass, nickel-plated
spanner size 54 mm
max. operating temperature 90 °C
min. clamping range 39 mm
Thread size M50
Logistics
Customs tariff number 74122000
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
