98062 | HELUKABEL

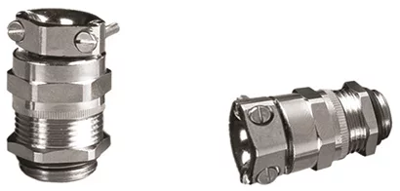

Cable gland, PG9, 17 mm, Clamping range 4 to 8 mm, IP68/IP69K, 98062

Order No.: 93F7933
EAN: 4060892367281
MPN:
98062
Series: HSK-MZ-E
98062 HELUKABEL Cable Glands
Image may differ
Unit Price (€ / pc.)
17.3978 € *
Available in 5 Days: 50 pcs. - if ordered today
Total Price:
869.89 € *
*incl. VAT plus shipping costs
Subject to prior sale
50 pcs.
17.3978 €

Cable gland, 98062, HELUKABEL

The EMC cable gland is constructed from nickel-plated brass and operates within a temperature range of -40°C to +100°C, offering protection classes IP 68 and IP 69K.

Features

  • Optimum strain relief through clamping lamella
  • Easy to assemble, time and cost savings
  • Watertight, dust-tight
  • Large clamping areas

Applications

  • Machine and plant construction
  • Automation technology
  • Vehicle construction and shipbuilding
  • Installation technology
Technical specifications
Degree of protection (IP) IP68/IP69K
max. clamping range 8 mm
Product type cable gland
min. operating temperature -40 °C
Material brass, nickel-plated
spanner size 17 mm
max. operating temperature 100 °C
min. clamping range 4 mm
Thread size PG9
Logistics
Customs tariff number 85369010
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
