98061 | HELUKABEL
Cable gland, PG7, 14 mm, Clamping range 3 to 6.5 mm, IP68/IP69K, 98061
Unit Price (€ / pc.)
16.065 € *
Standard delivery time from the manufacturer is: 6 Weeks

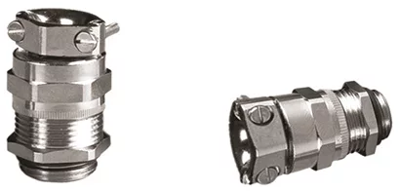

Cable gland, 98061, HELUKABEL
The EMC cable gland is constructed from nickel-plated brass and operates within a temperature range of -40°C to +100°C, offering protection classes IP 68 and IP 69K.
Features
- Optimum strain relief through clamping lamella
- Easy to assemble, time and cost savings
- Watertight, dust-tight
- Large clamping areas
Applications
- Machine and plant construction
- Automation technology
- Vehicle construction and shipbuilding
- Installation technology
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Thread size | PG7 | |
| Degree of protection (IP) | IP68/IP69K | |
| max. clamping range | 6.5 mm | |
| Product type | cable gland | |
| Material | brass, nickel-plated | |
| max. operating temperature | 100 °C | |
| spanner size | 14 mm | |
| min. operating temperature | -40 °C | |
| min. clamping range | 3 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
