98053 | HELUKABEL

Cable gland, Ex, M50, 57 mm, Clamping range 32 to 38 mm, IP68/IP69K, metal, 98053

Order No.: 93F8918
EAN: 4060892366895
MPN:
98053
Series: HSK-MS-EX
98053 HELUKABEL Cable Glands
Image may differ
Unit Price (€ / pc.)
84.0021 € *
Available in 5 Days: 5 pcs. - if ordered today
Total Price:
420.01 € *
*incl. VAT plus shipping costs
Subject to prior sale
5 pcs.
84.0021 €

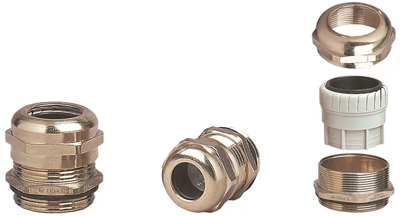

Cable gland, 98053, HELUKABEL

Nickel plated brass EX cable gland, Temperature range -20°C to +95°C, Protection class IP 68 - 10 bar / IP 69K.

Features

  • Optimum strain relief through clamping lamella
  • Easy to assemble, time and cost savings
  • Large clamping areas

Applications

  • Machine and plant construction
  • Automation technology
  • Control cabinet construction
  • Installation technology
Technical specifications
Filter Property Value
Colour metal
Thread size M50
max. clamping range 38 mm
Degree of protection (IP) IP68/IP69K
max. operating temperature 95 °C
min. operating temperature -20 °C
spanner size 57 mm
Material brass, nickel-plated
Version Ex
Product type cable gland
min. clamping range 32 mm
Logistics
Property Value
Customs tariff number 85389099
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
