98047 | HELUKABEL
Cable gland, Ex, M16, 20 mm, Clamping range 5 to 10 mm, IP68/IP69K, metal, 98047
Unit Price (€ / pc.)
11.0551 € *
Standard delivery time from the manufacturer is: 6 Weeks

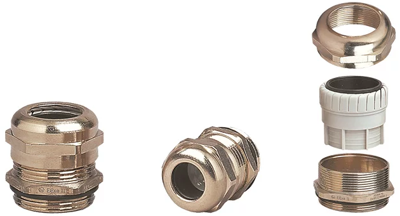

Cable gland, 98047, HELUKABEL
Nickel plated brass EX cable gland, Temperature range -20°C to +95°C, Protection class IP 68 - 10 bar / IP 69K.
Features
- Optimum strain relief through clamping lamella
- Easy to assemble, time and cost savings
- Large clamping areas
Applications
- Machine and plant construction
- Automation technology
- Control cabinet construction
- Installation technology
Technical specifications
| Material | brass, nickel-plated | |
| spanner size | 20 mm | |
| Version | Ex | |
| Product type | cable gland | |
| Thread size | M16 | |
| max. clamping range | 10 mm | |
| Colour | metal | |
| min. clamping range | 5 mm | |
| Degree of protection (IP) | IP68/IP69K | |
| min. operating temperature | -20 °C | |
| max. operating temperature | 95 °C |
Download
Logistics
| Customs tariff number | 85389099 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
