98010 | HELUKABEL

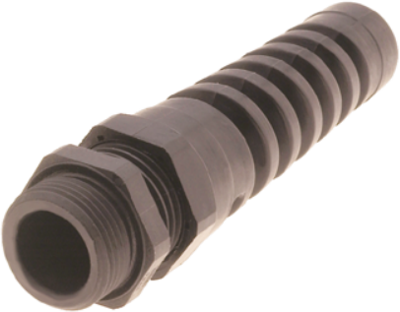

Cable gland, M25, 33 mm, Clamping range 13 to 18 mm, IP68/IP69K, gray, 98010
Unit Price (€ / pc.)
4.7243 € *
Standard delivery time from the manufacturer is: 6 Weeks
Cable gland, 98010, HELUKABEL
PA cable gland, Temperature range -40°C to +100°C, Protection class IP 68 - 10 bar / IP 69K - within the specific clamping range with additional o-ring.
Features
- Halogen-free
- Phosphor-free
- Silicone-free
- Optimum strain relief through clamping lamella
- Easy to assemble, time and cost savings
- Large clamping areas
Applications
- Machine and plant construction
- Automation technology
- Vehicle construction and shipbuilding
- Railway technology
- Installation technology
- Control cabinet construction
Technical specifications
| Colour | gray | |
| Degree of protection (IP) | IP68/IP69K | |
| max. clamping range | 18 mm | |
| Product type | cable gland | |
| min. operating temperature | -40 °C | |
| Material | PA | |
| spanner size | 33 mm | |
| max. operating temperature | 10 °C | |
| min. clamping range | 13 mm | |
| Thread size | M25 |
Download
Logistics
| Customs tariff number | 39269097 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
