97574 | HELUKABEL

Cable gland, M25, 30 mm, Clamping range 13 to 18 mm, IP68/IP69K, 97574

Order No.: 93F7907
EAN: 4060892366659
MPN:
97574
Series: HSK-MS-PVDF
97574 HELUKABEL Cable Glands
Image may differ
Unit Price (€ / pc.)
19.8611 € *
Available in 5 Days: 125 pcs. - if ordered today
Total Price:
496.53 € *
*incl. VAT plus shipping costs
Subject to prior sale
25 pcs.
19.8611 €

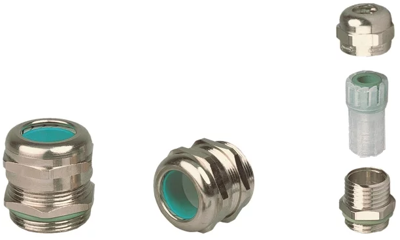

Cable gland, 97574, HELUKABEL

The 97574 is a cable gland that meets stringent requirements in technology. Polyvinylidene fluoride for use in the chemical industry, at high temperatures, under long-term UV exposure.

Features

  • Optimum strain relief through clamping lamella
  • Easy to assemble, time and cost savings
  • Watertight, dust-tight
  • Large temperature range
Technical specifications
Degree of protection (IP) IP68/IP69K
max. clamping range 18 mm
Product type cable gland
min. operating temperature -35 °C
Material brass, nickel-plated
spanner size 30 mm
max. operating temperature 150 °C
min. clamping range 13 mm
Thread size M25
Logistics
Customs tariff number 85389099
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
