97566 | HELUKABEL

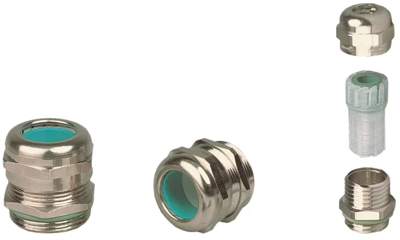

Cable gland, PG21, 30 mm, Clamping range 13 to 18 mm, IP68/IP69K, 97566

Order No.: 93F7914
EAN: 4060892366574
MPN:
97566
Series: HSK-MS-PVDF
97566 HELUKABEL Cable Glands
Image may differ
Unit Price (€ / pc.)
28.2982 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
707.46 € *
*incl. VAT plus shipping costs
Subject to prior sale
25 pcs.
28.2982 €

Cable gland, 97566, HELUKABEL

The 97566 is a cable gland that meets stringent requirements in technology. Polyvinylidene fluoride for use in the chemical industry, at high temperatures, under long-term UV exposure.

Features

  • Optimum strain relief through clamping lamella
  • Easy to assemble, time and cost savings
  • Watertight, dust-tight
  • Large temperature range
Technical specifications
Degree of protection (IP) IP68/IP69K
max. clamping range 18 mm
Product type cable gland
min. operating temperature -35 °C
Material brass, nickel-plated
spanner size 30 mm
max. operating temperature 150 °C
min. clamping range 13 mm
Thread size PG21
Logistics
Customs tariff number 74198090
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
