93929 | HELUKABEL
Cable gland, M50, 60 mm, Clamping range 30 to 38 mm, IP66/IP68, dark gray, 93929
Unit Price (€ / pc.)
5.4978 € *
Available: 0 pcs.
Available in 5 Days: 300 pcs.
Leadtime: 6 Weeks **
Total Price:
54.98 € *
Price list
Quantity
Price per unit*
10 pcs.
5.4978 €
50 pcs.
5.1765 €
100 pcs.
4.8552 €
*incl. VAT plus shipping costs
**Subject to prior sale

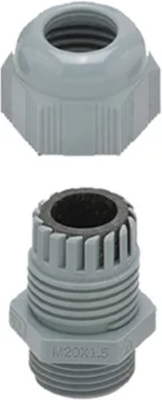

Cable gland, 93929, HELUKABEL
The 93929 cable gland has an optimum strain relief through clamping lamella. This product is easy to to assemble, time and cost saving.
Features
- Watertight, dust-tight
- With vibration protection
- Large clamping area
- Phosphor-free
- Silicone-free
- Cadmium-free
Applications
- Machine and plant construction
- Automation technology
- Vehicle construction and shipbuilding
- Railway technology
- Installation technology
- Control cabinet construction
- Robotics
Technical specifications
| Colour | dark gray | |
| Degree of protection (IP) | IP66/IP68 | |
| max. clamping range | 38 mm | |
| Product type | cable gland | |
| min. operating temperature | -20 °C | |
| Material | PA | |
| spanner size | 60 mm | |
| max. operating temperature | 100 °C | |
| min. clamping range | 30 mm | |
| Thread size | M50 |
Download
Logistics
| Customs tariff number | 39174000 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
