93853 | HELUKABEL

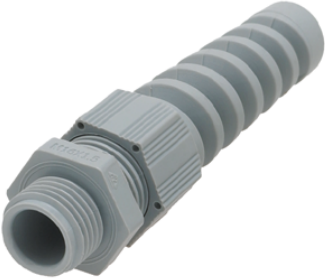

Cable gland, PG13.5, 24 mm, Clamping range 6 to 12 mm, IP66/IP68, dark gray, 93853
Unit Price (€ / pc.)
0.7497 € *
Available in 5 Days: 950 pcs. - if ordered today
Cable gland, 93853, HELUKABEL
The 93853 cable gland has an optimum strain relief through clamping lamella. This product is easy to assemble, time and cost savings.
Features
- Phosphor-free
- Silicone-free
- Cadmium-free
- Watertight, dust-tight
- Große Klemmbereiche
- With anti-kink spiral for mobile use
Applications
- Machine and plant construction
- Robotics
- Automation technology
- Vehicle construction and shipbuilding
- Railway technology
- Installation technology
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Material | PA | |
| Thread size | PG13.5 | |
| max. operating temperature | 100 °C | |
| max. clamping range | 12 mm | |
| Product type | cable gland | |
| min. clamping range | 6 mm | |
| min. operating temperature | -20 °C | |
| spanner size | 24 mm | |
| Degree of protection (IP) | IP66/IP68 | |
| Colour | dark gray |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 39174000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
