92887 | HELUKABEL

Cable gland, Ex, M63, 64/68 mm, Clamping range 37 to 44 mm, IP68/IP69K, 92887

Order No.: 93F8609
EAN: 4060892367816
MPN:
92887
Series: HSK-MS-EX-E
92887 HELUKABEL Cable Glands
Image may differ
Unit Price (€ / pc.)
121.3324 € *
Available in 5 Days: 40 pcs. - if ordered today
Total Price:
606.66 € *
*incl. VAT plus shipping costs
Subject to prior sale
5 pcs.
121.3324 €

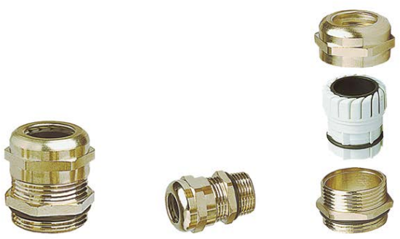

Cable gland, 92887, HELUKABEL

Nickel plated brass EX EMC cable gland, Temperature range -20°C to +95°C, Protection class IP 68 - 10 bar / IP 69K.

Features

  • Optimum strain relief through clamping lamella
  • Easy to assemble, time and cost savings

Applications

  • Machine and plant construction
  • Automation technology
  • Vehicle construction and shipbuilding
  • Installation technology
Technical specifications
Filter Property Value
Thread size M63
max. clamping range 44 mm
Degree of protection (IP) IP68/IP69K
max. operating temperature 95 °C
min. operating temperature -20 °C
spanner size 64/68 mm
Material brass, nickel-plated
Version Ex
Product type cable gland
min. clamping range 37 mm
Logistics
Property Value
Customs tariff number 85389099
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
