92885 | HELUKABEL

Cable gland, Ex, M40, 50 mm, Clamping range 22 to 32 mm, IP68/IP69K, 92885

Order No.: 93F8607
EAN: 4060892367793
MPN:
92885
Series: HSK-MS-EX-E
92885 HELUKABEL Cable Glands

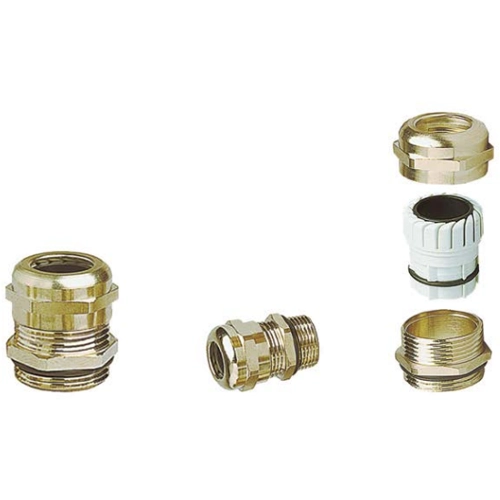

Image may differ
Unit Price (€ / pc.)
56.406 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
564.06 € *
*incl. VAT plus shipping costs
Subject to prior sale
10 pcs.
56.406 €

Cable gland, 92885, HELUKABEL

Nickel plated brass EX EMC cable gland, Temperature range -20°C to +95°C, Protection class IP 68 - 10 bar / IP 69K.

Features

  • Optimum strain relief through clamping lamella
  • Easy to assemble, time and cost savings

Applications

  • Machine and plant construction
  • Automation technology
  • Vehicle construction and shipbuilding
  • Installation technology
Technical specifications
Filter Property Value
Thread size M40
max. clamping range 32 mm
Degree of protection (IP) IP68/IP69K
max. operating temperature 95 °C
min. operating temperature -20 °C
spanner size 50 mm
Material brass, nickel-plated
Version Ex
Product type cable gland
min. clamping range 22 mm
Logistics
Property Value
Customs tariff number 85389099
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
