92884 | HELUKABEL

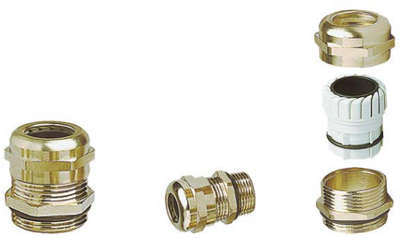

Cable gland, Ex, M32, 40 mm, Clamping range 20 to 25 mm, IP68/IP69K, 92884

Order No.: 93F8606
EAN: 4060892367786
MPN:
92884
Series: HSK-MS-EX-E
92884 HELUKABEL Cable Glands
Image may differ
Unit Price (€ / pc.)
38.0443 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
951.11 € *
*incl. VAT plus shipping costs
Subject to prior sale
25 pcs.
38.0443 €

Cable gland, 92884, HELUKABEL

Nickel plated brass EX EMC cable gland, Temperature range -20°C to +95°C, Protection class IP 68 - 10 bar / IP 69K.

Features

  • Optimum strain relief through clamping lamella
  • Easy to assemble, time and cost savings

Applications

  • Machine and plant construction
  • Automation technology
  • Vehicle construction and shipbuilding
  • Installation technology
Technical specifications
Filter Property Value
Thread size M32
max. clamping range 25 mm
Degree of protection (IP) IP68/IP69K
max. operating temperature 95 °C
min. operating temperature -20 °C
spanner size 40 mm
Material brass, nickel-plated
Version Ex
Product type cable gland
min. clamping range 20 mm
Logistics
Property Value
Customs tariff number 85389099
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
