92883 | HELUKABEL

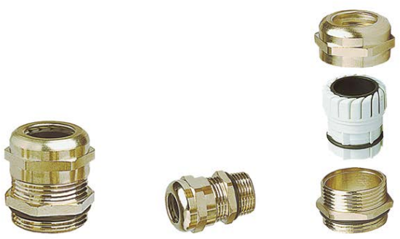

Cable gland, Ex, M25, 30 mm, Clamping range 14 to 18 mm, IP68/IP69K, 92883

Order No.: 93F8605
EAN: 4060892367779
MPN:
92883
Series: HSK-MS-EX-E
92883 HELUKABEL Cable Glands
Image may differ
Unit Price (€ / pc.)
21.539 € *
Available in 5 Days: 100 pcs. - if ordered today
Total Price:
538.48 € *
*incl. VAT plus shipping costs
Subject to prior sale
25 pcs.
21.539 €

Cable gland, 92883, HELUKABEL

Nickel plated brass EX EMC cable gland, Temperature range -20°C to +95°C, Protection class IP 68 - 10 bar / IP 69K.

Features

  • Optimum strain relief through clamping lamella
  • Easy to assemble, time and cost savings

Applications

  • Machine and plant construction
  • Automation technology
  • Vehicle construction and shipbuilding
  • Installation technology
Technical specifications
Filter Property Value
Thread size M25
max. clamping range 18 mm
Degree of protection (IP) IP68/IP69K
max. operating temperature 95 °C
min. operating temperature -20 °C
spanner size 30 mm
Material brass, nickel-plated
Version Ex
Product type cable gland
min. clamping range 14 mm
Logistics
Property Value
Customs tariff number 85389099
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
