920514 | HELUKABEL

Flange screw connection, foldable, M20, IP65, black, 920514

Order No.: 93F9262
EAN: 4060892385124
MPN:
920514
Series: HSSV-KF
920514 HELUKABEL Cable Glands
Image may differ
Unit Price (€ / pc.)
6.0928 € *
Available in 5 Days: 10 pcs. - if ordered today
Total Price:
60.93 € *
*incl. VAT plus shipping costs
Subject to prior sale
10 pcs.
6.0928 €

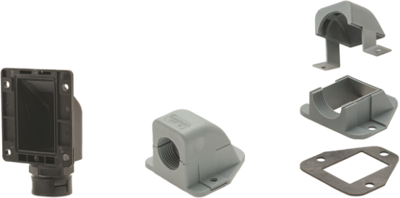

Folding flange fitting, 920514, HELUKABEL

Opening flange angle for connection glands or cable glands. Flange angle opened to enable simple insertion of pre-assembled cables. Highly stable.

Features

  • Halogen-free
  • Phosphor-free
  • Cadmium-free
  • Easy to assemble, time and cost savings
  • Resistant to: fuels, mineral oils, greases, weak bases, weak acids
Technical specifications
Filter Property Value
Colour black
Degree of protection (IP) IP65
Length 49 mm
Product type flange screw connection
Version foldable
min. operating temperature -40 °C
Material PA
max. operating temperature 110 °C
Thread size M20
Logistics
Property Value
Customs tariff number 39174000
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
