91841 | HELUKABEL
Angled gland, M20, 24 mm, Clamping range 6 to 12 mm, IP68, black, 91841
Unit Price (€ / pc.)
10.6624 € *
Available in 5 Days: 50 pcs. - if ordered today

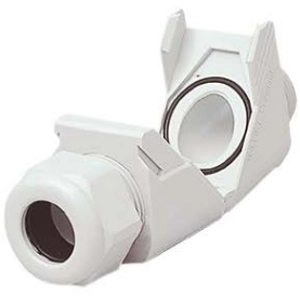

Cable gland, 91841, HELUKABEL
PA elbow gland, Cadmium-free, Temperature range -40°C to +100°C, Protection class IP 68.
Features
- Halogen-free
- Phosphor-free
- Silicone-free
- Optimum strain relief through clamping lamella
- Easy to assemble, time and cost savings
Applications
- Machine and plant construction
- Automation technology
- Vehicle construction and shipbuilding
- Railway technology
- Installation technology
- Control cabinet construction
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. operating temperature | 100 °C | |
| spanner size | 24 mm | |
| min. operating temperature | -40 °C | |
| Colour | black | |
| Material | PA | |
| Thread size | M20 | |
| min. clamping range | 6 mm | |
| max. clamping range | 12 mm | |
| Degree of protection (IP) | IP68 | |
| Product type | angled gland |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 39269097 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
