90800 | HELUKABEL

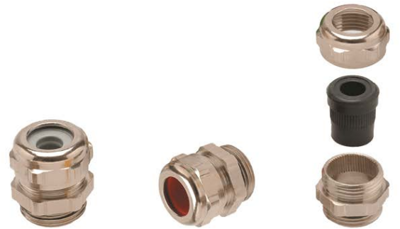

Sealing cable gland, M12, 14 mm, Clamping range 4 to 6.5 mm, IP68, yellow, 90800
Unit Price (€ / pc.)
2.4871 € *
Standard delivery time from the manufacturer is: 6 Weeks
Sealing gland, 90800, HELUKABEL
Nickel plated brass sealing gland with colour-coded Soft PVC inserts.
Features
- Easy to assemble, time and cost savings
- Large-area sealing
Applications
- Machine and plant construction
- Automation technology
- Vehicle construction and shipbuilding
- Railway technology
- Installation technology
- Control cabinet construction
Technical specifications
| Filter | Property | Value |
|---|---|---|
| spanner size | 14 mm | |
| max. operating temperature | 105 °C | |
| max. clamping range | 6.5 mm | |
| Thread size | M12 | |
| Colour | yellow | |
| Degree of protection (IP) | IP68 | |
| Material | brass, nickel-plated | |
| min. clamping range | 4 mm | |
| min. operating temperature | -20 °C | |
| Product type | sealing cable gland |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 74198090 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
