90750 | HELUKABEL
Cable gland, PG7, 14 mm, Clamping range 3 to 6.5 mm, IP66/IP68, 90750
Unit Price (€ / pc.)
1.6065 € *
Available in 5 Days: 1,500 pcs. - if ordered today

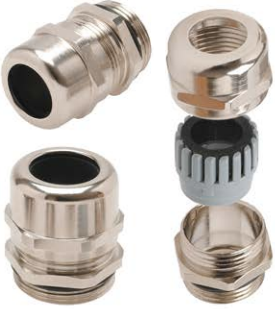

Cable gland, 90750, HELUKABEL
The 90750 cable gland has an optimum strain relief through clamping lamella. This product is easy to assemble, time and cost savings.
Features
- Watertight, dust-tight
- Große Klemmbereiche
Applications
- Machine and plant construction
- Robotics
- Automation technology
- Vehicle construction and shipbuilding
- Railway technology
- Installation technology
- Control cabinet construction
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Thread size | PG7 | |
| max. clamping range | 6.5 mm | |
| Degree of protection (IP) | IP66/IP68 | |
| max. operating temperature | 100 °C | |
| min. operating temperature | -20 °C | |
| spanner size | 14 mm | |
| Material | brass, nickel-plated | |
| Product type | cable gland | |
| min. clamping range | 3 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 74122000 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
