906994 | HELUKABEL
Cable gland, M16, 17 mm, Clamping range 4 to 7 mm, IP66/IP67, metal, 906994
Unit Price (€ / pc.)
22.3125 € *
Available in 5 Days: 100 pcs. - if ordered today
Cable gland, 906994, HELUKABEL

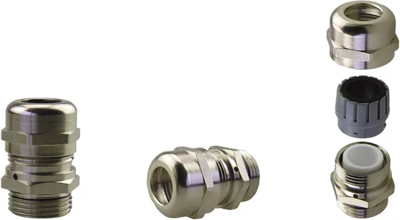

The 906994 is a nickel plated brass cable gland with integrated pressure compensation and ventilation system. This product has protection against ingress of water and foreign material into enclosure. Membrane allows that air humidity can leave the enclosure even at low pressure differences.
Features
- Phosphor-free
- Silicone-free
- Optimum strain relief through clamping lamella
- Easy to assemble, time and cost savings
- Large clamping areas
Applications
- High sealing enclosures
- Environments with extensive temperature ranges
- Prevents water condensation
Technical specifications
| Colour | metal | |
| Degree of protection (IP) | IP66/IP67 | |
| max. clamping range | 7 mm | |
| Product type | cable gland | |
| min. operating temperature | -20 °C | |
| Material | brass, nickel-plated | |
| spanner size | 17 mm | |
| max. operating temperature | 100 °C | |
| min. clamping range | 4 mm | |
| Thread size | M16 |
Download
Logistics
| Customs tariff number | 74122000 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
