906990 | HELUKABEL
Cable gland, M12, 19 mm, Clamping range 4 to 7 mm, IP66/IP67, gray, 906990
Unit Price (€ / pc.)
2.5228 € *
Available in 5 Days: 100 pcs. - if ordered today

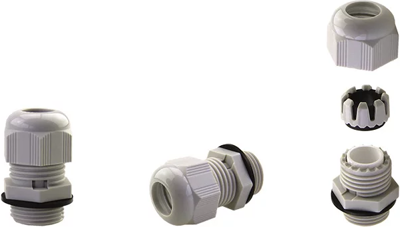

Cable gland, 906990, HELUKABEL
The 906990 is a PA cable gland with integrated pressure compensation and ventilation system. This product has protection against ingress of water and foreign material into enclosure. Membrane allows that air humidity can leave the enclosure even at low pressure differences.
Features
- Phosphor-free
- Silicone-free
- Optimum strain relief through clamping lamella
- Easy to assemble, time and cost savings
- Large clamping areas
Applications
- High sealing enclosures
- Environments with extensive temperature ranges
- Prevents water condensation
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | gray | |
| Thread size | M12 | |
| max. clamping range | 7 mm | |
| Degree of protection (IP) | IP66/IP67 | |
| max. operating temperature | 100 °C | |
| min. operating temperature | -20 °C | |
| spanner size | 19 mm | |
| Material | PA | |
| Product type | cable gland | |
| min. clamping range | 4 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 39174000 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
