905964 | HELUKABEL
Sealing cable gland, M105, Clamping range 79 to 90 mm, IP68, metal, 905964
Unit Price (€ / pc.)
489.7445 € *
Available in 5 Days: 8 pcs. - if ordered today

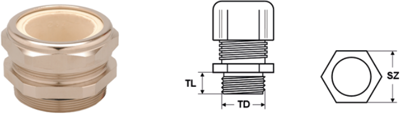

Sealing gland, 905964, HELUKABEL
Nickel plated brass sealing gland for very large cable diameters.
Features
- Easy to assemble, time and cost savings
- Large-area sealing
Applications
- Machine and plant construction
- Automation technology
- Vehicle construction and shipbuilding
- Installation technology
- Control cabinet construction
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. operating temperature | 135 °C | |
| min. operating temperature | -40 °C | |
| Colour | metal | |
| Material | brass, nickel-plated | |
| Thread size | M105 | |
| min. clamping range | 79 mm | |
| max. clamping range | 90 mm | |
| Degree of protection (IP) | IP68 | |
| Product type | sealing cable gland |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 74122000 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
