90575 | HELUKABEL

Cable gland, PG29, 40 mm, Clamping range 18 to 27 mm, IP54, 90575

Order No.: 12H0969
EAN: 4060892369605
MPN:
90575
Series: ZES
90575 HELUKABEL Cable Glands
Image may differ
Unit Price (€ / pc.)
13.6493 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
341.23 € *
*incl. VAT plus shipping costs
Subject to prior sale
25 pcs.
13.6493 €

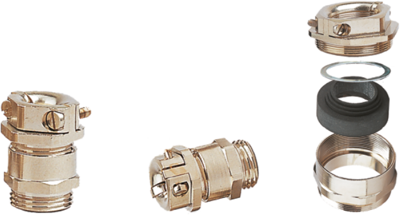

Cable gland, 90575, HELUKABEL

Nickel plated hexagonal brass strain relief gland, Temperature range -20°C to +60°C, Protection class IP 54.

Features

  • Optimum strain relief through clamping lamella

Applications

  • Machine and plant construction
  • Automation technology
  • Vehicle construction and shipbuilding
  • Railway technology
  • Installation technology
  • Control cabinet construction
Technical specifications
Thread size PG29
Material brass, nickel-plated
max. operating temperature 60 °C
spanner size 40 mm
max. clamping range 27 mm
Product type cable gland
min. clamping range 18 mm
min. operating temperature -20 °C
Degree of protection (IP) IP54
Logistics
Customs tariff number 85389099
Compliance
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
