90570 | HELUKABEL
Cable gland, PG9, 17 mm, Clamping range 6.5 to 10 mm, IP54, 90570
Unit Price (€ / pc.)
5.0456 € *
Available in 5 Days: 50 pcs. - if ordered today

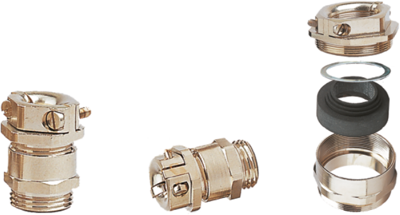

Cable gland, 90570, HELUKABEL
Nickel plated hexagonal brass strain relief gland, Temperature range -20°C to +60°C, Protection class IP 54.
Features
- Optimum strain relief through clamping lamella
Applications
- Machine and plant construction
- Automation technology
- Vehicle construction and shipbuilding
- Railway technology
- Installation technology
- Control cabinet construction
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. operating temperature | 60 °C | |
| spanner size | 17 mm | |
| min. operating temperature | -20 °C | |
| Material | brass, nickel-plated | |
| Thread size | PG9 | |
| min. clamping range | 6.5 mm | |
| max. clamping range | 10 mm | |
| Degree of protection (IP) | IP54 | |
| Product type | cable gland |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85389099 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
