90544 | HELUKABEL

Cable gland, PG16, 24/22 mm, Clamping range 14 to 16 mm, IP54, metal, 90544

Order No.: 93F8833
EAN: 4060892369216
MPN:
90544
Series: STS
90544 HELUKABEL Cable Glands
Image may differ
Unit Price (€ / pc.)
3.8556 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
192.78 € *
*incl. VAT plus shipping costs
Subject to prior sale
50 pcs.
3.8556 €

Cable gland, 90544, HELUKABEL

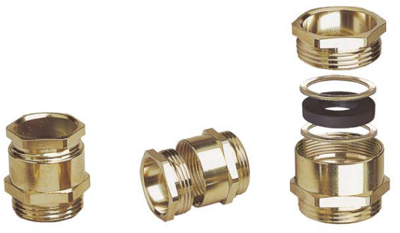

Nickel plated hexagonal brass cable gland acc. to DIN 46320, Temperature range -20°C to +60°C, Protection class IP 54.

Applications

  • Machine and plant construction
  • Automation technology
  • Vehicle construction and shipbuilding
  • Railway technology
  • Installation technology
  • Control cabinet construction
Technical specifications
Filter Property Value
spanner size 24/22 mm
Colour metal
Degree of protection (IP) IP54
min. operating temperature -20 °C
max. operating temperature 60 °C
Material brass, nickel-plated
max. clamping range 16 mm
min. clamping range 14 mm
Thread size PG16
Product type cable gland
Logistics
Property Value
Customs tariff number 85389099
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
