90542 | HELUKABEL

Cable gland, PG11, 20/18 mm, Clamping range 6.5 to 12 mm, IP54, metal, 90542

Order No.: 93F8832
EAN: 4060892369193
MPN:
90542
Series: STS
90542 HELUKABEL Cable Glands
Image may differ
Unit Price (€ / pc.)
2.3562 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
117.81 € *
*incl. VAT plus shipping costs
Subject to prior sale
50 pcs.
2.3562 €

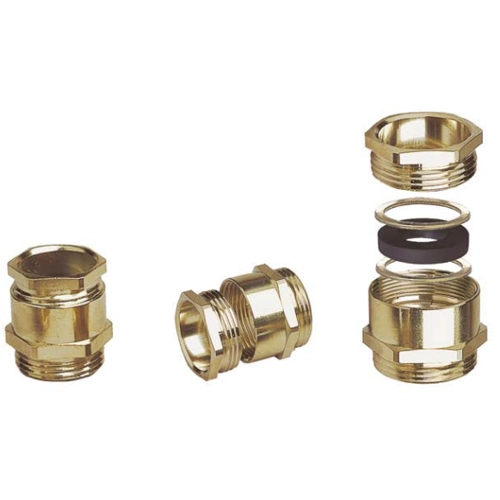

Cable gland, 90542, HELUKABEL

Nickel plated hexagonal brass cable gland acc. to DIN 46320, Temperature range -20°C to +60°C, Protection class IP 54.

Applications

  • Machine and plant construction
  • Automation technology
  • Vehicle construction and shipbuilding
  • Railway technology
  • Installation technology
  • Control cabinet construction
Technical specifications
Filter Property Value
spanner size 20/18 mm
Colour metal
Degree of protection (IP) IP54
min. operating temperature -20 °C
max. operating temperature 60 °C
Material brass, nickel-plated
max. clamping range 12 mm
min. clamping range 6.5 mm
Thread size PG11
Product type cable gland
Logistics
Property Value
Customs tariff number 85389099
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
