905248 | HELUKABEL
Cable gland, M63, 75 mm, Clamping range 37 to 53 mm, IP68, silver, 905248
Unit Price (€ / pc.)
90.083 € *
Available in 5 Days: 150 pcs. - if ordered today

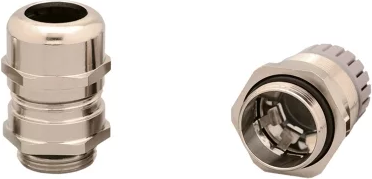

Cable gland, 905248, HELUKABEL
The 905248 nickel plated brass EMC cable gland is easy to assemble, time and cost savings. It offers optimum strain relief through clamping lamella.
Features
- Watertight, dust-tight
- Excellent vibration resistance
- Large clamping area
- Automatic secure connection when closed
- Excellent screening attenuation and current discharge
Applications
- Machine and plant construction
- Robotics
- Automation technology
- Vehicle construction and shipbuilding
- Railway technology
- Installation technology
- Control cabinet construction
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. operating temperature | 100 °C | |
| spanner size | 75 mm | |
| min. operating temperature | -20 °C | |
| Colour | silver | |
| Material | brass, nickel-plated | |
| Thread size | M63 | |
| min. clamping range | 37 mm | |
| max. clamping range | 53 mm | |
| Degree of protection (IP) | IP68 | |
| Product type | cable gland |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 74122000 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
