905185 | HELUKABEL
Cable gland, M25, 30 mm, Clamping range 10 to 18 mm, IP68, silver, 905185
Unit Price (€ / pc.)
10.4839 € *
Standard delivery time from the manufacturer is: 6 Weeks

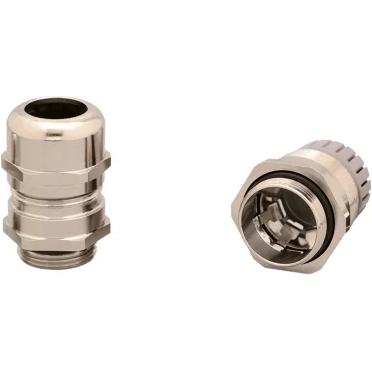

Cable gland, 905185, HELUKABEL
The 905185 nickel plated brass EMC cable gland is easy to assemble, time and cost savings. It offers optimum strain relief through clamping lamella.
Features
- Watertight, dust-tight
- Excellent vibration resistance
- Large clamping area
- Automatic secure connection when closed
- Excellent screening attenuation and current discharge
Applications
- Machine and plant construction
- Robotics
- Automation technology
- Vehicle construction and shipbuilding
- Railway technology
- Installation technology
- Control cabinet construction
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | silver | |
| min. operating temperature | -20 °C | |
| Material | brass, nickel-plated | |
| max. clamping range | 18 mm | |
| max. operating temperature | 100 °C | |
| spanner size | 30 mm | |
| Thread size | M25 | |
| Product type | cable gland | |
| Degree of protection (IP) | IP68 | |
| min. clamping range | 10 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 74122000 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
