904257 | HELUKABEL

Sealing insert, M16, Clamping range 6.5 to 9.5 mm, transparent, 904257

Order No.: 93F9165
EAN: 4060892358357
MPN:
904257
Series: UNI-DICHT-SIS
904257 HELUKABEL Cable Glands
Image may differ
Unit Price (€ / pc.)
1.1305 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
113.05 € *
*incl. VAT plus shipping costs
Subject to prior sale
100 pcs.
1.1305 €

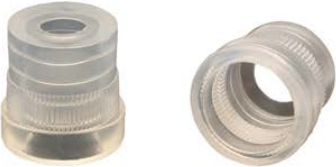

Sealing insert, 904257, HELUKABEL

Silicone sealing insert for populating of UNI-DICHT gland bodies. For use in chemical industry and at high temperatures.

Applications

  • Machine and plant construction
  • Robotics
  • Automation technology
  • Vehicle construction and shipbuilding
  • Railway technology
  • Installation technology
  • Control cabinet construction
Technical specifications
Filter Property Value
Material silicone
Product type sealing insert
max. operating temperature 200 °C
min. clamping range 6.5 mm
Thread size M16
min. operating temperature -60 °C
Colour transparent
max. clamping range 9.5 mm
Logistics
Property Value
Customs tariff number 39269097
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
